Other Operate Instructions

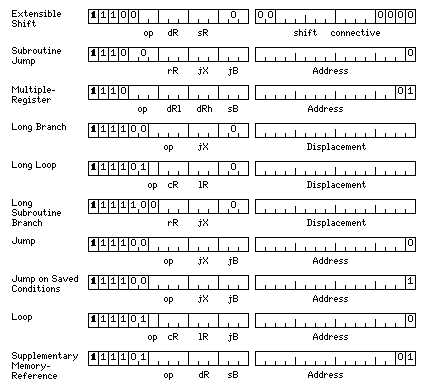

The formats of some of the remaining operate instructions are shown below:

These instructions are available as illustrated in Normal Mode only. The instructions are also available in Local Mode and Simple Mode, but with modified opcodes. A subset of these instructions, in some cases lacking certain features, most commonly indexing, is available in Compact Mode.

The opcodes of these operate instructions, shown for convenience in all three modes, are as follows:

Normal Mode     Simple Mode     Local Mode      Compact Mode
-------------   -------------   -------------   ---------------
160xxx xxxxx0   000xxx xxxxx0   040xxx xxxxx0   0606xx xxxxx0    JMS     Jump to Subroutine

162xxx xxxxx1   002xxx xxxxx0   042xxx xxxxx0                    LMU     Load Multiple
163xxx xxxxx1   003xxx xxxxx0   043xxx xxxxx0                    STMU    Store Multiple
164xxx xxxxx1   004xxx xxxxx0   044xxx xxxxx0                    LMUBR   Load Multiple Base Registers
165xxx xxxxx1   005xxx xxxxx0   045xxx xxxxx0                    STMUBR  Store Multiple Base Registers
166xxx xxxxx1   006xxx xxxxx0   046xxx xxxxx0                    LMUQ    Load Multiple Quad
167xxx xxxxx1   007xxx xxxxx0   047xxx xxxxx0                    STMUQ   Store Multiple Quad

1701x0          0101x0          0501x0                           LBL     Long Branch if Low
1702x0          0102x0          0502x0                           LBE     Long Branch if Equal
1703x0          0103x0          0503x0                           LBLE    Long Branch if Low or Equal
1704x0          0104x0          0504x0                           LBH     Long Branch if High
1705x0          0105x0          0505x0                           LBNE    Long Branch if Not Equal
1706x0          0106x0          0506x0                           LBHE    Long Branch if High or Equal
1707x0          0107x0          0507x0                           LBNV    Long Branch if No Overflow

1710x0          0110x0          0510x0                           LBV     Long Branch if Overflow

1712x0          0112x0          0512x0                           LBC     Long Branch if Carry
1713x0          0113x0          0513x0                           LBNC    Long Branch if No Carry

1717x0          0117x0          0517x0                           LBRA    Long Branch

172xx0          012xx0          052xx0          06x7x0           LBXH    Long Branch if Index High
173xx0          013xx0          053xx0          07x7x0           LBXLE   Long Branch if Index Low or Equal

174xx0          014xx0          054xx0          0707x0           LBRS    Long Branch to Subroutine

1701xx xxxxx0   0101xx xxxxx0   0501xx xxxxx0   0617xx xxxxx0    JL      Jump if Low
1702xx xxxxx0   0102xx xxxxx0   0502xx xxxxx0   0627xx xxxxx0    JE      Jump if Equal
1703xx xxxxx0   0103xx xxxxx0   0503xx xxxxx0   0637xx xxxxx0    JLE     Jump if Low or Equal
1704xx xxxxx0   0104xx xxxxx0   0504xx xxxxx0   0647xx xxxxx0    JH      Jump if High
1705xx xxxxx0   0105xx xxxxx0   0505xx xxxxx0   0657xx xxxxx0    JNE     Jump if Not Equal
1706xx xxxxx0   0106xx xxxxx0   0506xx xxxxx0   0667xx xxxxx0    JHE     Jump if High or Equal
1707xx xxxxx0   0107xx xxxxx0   0507xx xxxxx0   0677xx xxxxx0    JNV     Jump if No Overflow

1710xx xxxxx0   0110xx xxxxx0   0510xx xxxxx0   0707xx xxxxx0    JV      Jump if Overflow

1712xx xxxxx0   0112xx xxxxx0   0512xx xxxxx0   0727xx xxxxx0    JC      Jump if Carry
1713xx xxxxx0   0113xx xxxxx0   0513xx xxxxx0   0737xx xxxxx0    JNC     Jump if No Carry

1717xx xxxxx0   0117xx xxxxx0   0517xx xxxxx0   0777xx xxxxx0    JMP     Jump

1701xx xxxxx1   0101xx xxxxx1   0501xx xxxxx1   0617xx xxxxx1    JVL     Jump if Saved Low
1702xx xxxxx1   0102xx xxxxx1   0502xx xxxxx1   0627xx xxxxx1    JVE     Jump if Saved Equal
1703xx xxxxx1   0103xx xxxxx1   0503xx xxxxx1   0637xx xxxxx1    JVLE    Jump if Saved Low or Equal
1704xx xxxxx1   0104xx xxxxx1   0504xx xxxxx1   0647xx xxxxx1    JVH     Jump if Saved High
1705xx xxxxx1   0105xx xxxxx1   0505xx xxxxx1   0657xx xxxxx1    JVNE    Jump if Saved Not Equal
1706xx xxxxx1   0106xx xxxxx1   0506xx xxxxx1   0667xx xxxxx1    JVHE    Jump if Saved High or Equal
1707xx xxxxx1   0107xx xxxxx1   0507xx xxxxx1   0677xx xxxxx1    JVNV    Jump if Saved No Overflow

1710xx xxxxx1   0110xx xxxxx1   0510xx xxxxx1   0707xx xxxxx1    JVV     Jump if Saved Overflow

1712xx xxxxx1   0112xx xxxxx1   0512xx xxxxx1   0727xx xxxxx1    JVC     Jump if Saved Carry
1713xx xxxxx1   0113xx xxxxx1   0513xx xxxxx1   0737xx xxxxx1    JVNC    Jump if Saved No Carry

172xxx xxxxx0   012xxx xxxxx0   052xxx xxxxx0                    JXH     Jump if Index High
173xxx xxxxx0   013xxx xxxxx0   053xxx xxxxx0                    JXLE    Jump if Index Low or Equal

1720xx xxxxx1   0120xx xxxxx1   0520xx xxxxx1                    SLBR    Supplementary Load Base Register
1721xx xxxxx1   0121xx xxxxx1   0521xx xxxxx1                    SSTBR   Supplementary Store Base Register
1722xx xxxxx1   0122xx xxxxx1   0522xx xxxxx1                    SLSB    Supplementary Load Scratchpad Base
1723xx xxxxx1   0123xx xxxxx1   0523xx xxxxx1                    SSSB    Supplementary Store Scratchpad Base
1724xx xxxxx1   0124xx xxxxx1   0524xx xxxxx1                    SLPSB   Supplementary Load Pointer Scratchpad Base
1725xx xxxxx1   0125xx xxxxx1   0525xx xxxxx1                    SSPSB   Supplementary Store Pointer Scratchpad Base
1726xx xxxxx1   0126xx xxxxx1   0526xx xxxxx1                    SLASB   Supplementary Load Array Scratchpad Base
1727xx xxxxx1   0127xx xxxxx1   0527xx xxxxx1                    SSASB   Supplementary Store Array Scratchpad Base

Multiple-Register and Supplementary Memory-Reference Instructions

The LM and STM instructions operate on a range of destination registers specified in the instruction, and are useful for saving and restoring registers when a subroutine is called. The LMBR and STMBR instructions, and the LMQ and STMQ instructions perform the same function for the base registers and the floating-point registers.

If the base register zero is indicated in these instructions, the address field is omitted. Unlike the case of standard memory-reference instructions, base register zero is used, however: in the case of a store instruction, it serves as a pointer to the memory to which information is stored, and the length of the information stored is then added to its contents; in the case of a load instruction, the length of the information to be read is first subtracted from its contents, and then it is used as a pointer to that information.

In other words, the load and store multiple instructions, when base register zero is indicated, are POP and PUSH instructions, with base register zero serving as a stack pointer.

The various supplementary load and store instructions provide memory-reference instructions which only have the simple register-memory addressing mode, to allow access to individual base and scratchpad registers.

Note that these instructions will execute successfully even when they are performing partly unaligned reading or writing of data, as the instruction format only enforces alignment to 32-bit boundaries. Also note that only the complete contents of a register may be placed on a stack or removed from it; there are no byte, halfword, floating or double PUSH or POP instructions.

Jump Instructions

These are the instructions which carry out a transfer of control, causing the steps of the program being executed to be fetched from an address different from the next one in sequence. Some of these instructions involve bits of the status word. There is a carry bit which is set, either to 0 or to 1, by operations that could produce a carry out of one of the 32-bit arithmetic/index registers. Also, other bits indicate if the result of an arithmetic operation, whether integer or floating-point, is positive, negative, or zero. These determine if a conditional jump instruction results in a jump.

The rR field in a JMS instruction refers to a base register rather than an arithmetic/index register. Thus, to return from a subroutine called by a JMS instruction, a jump instruction using the same base register and with an address field containing zero is used. (Note that a nonzero address field can be used if space following the JMS instruction is to be skipped because it is used to pass information, such as a pointer to an argument list, to the subroutine, following some manner of calling convention. Usually, however, the pointer to the argument list will be put in a register designated by convention for this purpose, such as base register 1.)

If the rR field is zero, however, instead of the return address being stored in base register zero, it is stored in the memory location pointed to by base register zero, which is then incremented by either 4 or 8. This allows the use of base register zero as a stack pointer, and the use of that stack for subroutine jumps.

The JV instruction transfers control if an overflow condition is present; the other conditional jumps never transfer control if an overflow is present.

If indexed addressing is used in a jump instruction, the instruction does not jump to the memory location at the effective address, but instead to the location whose address it contains. This addressing mode, post-indexed indirect addressing, allows branching to one of several locations in a list. This also applies to the JMS instruction.

As well, there is a second set of conditional jump instructions which operate from the alternate copy of condition codes which can be set by register-to-register instructions in Normal Mode, or by any instructions if the postfix supplementary bit is used to specify saving the condition code. This is intended to avoid the need for speculative execution and yet allow instructions to execute one after another at full speed on a pipelined implementation.

The JXH and JXLH instructions decrement and increment, respectively, the count register specified in the cR field, compare it to the limit register specified in the lR field, and jump if the count register is high in the first case, or low or equal in the second.

There are also Long Branch instructions, which correspond to the Jump instructions. For these instructions, the address field is replaced by a signed 16-bit quantity which indicates a number of halfwords from the address immediately following the instruction.

These instructions are indicated by a base register field of zero. Since the displacement occupies the entire 16-bit field, rather than being a halfword-aligned address, note that what would be multiple-register instructions as well as jump and loop instructions become long branch instructions when their base register fields contain zero.

Extensible Shift Instructions

The Extensible Shift instructions perform what is termed a "funnel shift", to facilitate shifting of multi-word operands of arbitrary length. The two instructions are:

160xx0 0xxxx0  ESL    Extensible Shift Left
161xx0 0xxxx0  ESR    Extensible Shift Right

The source argument consists of one arithmetic/index register, and the destination argument consists of two consecutive arithmetic/index registers, and is not restricted to starting with an even-numbered register.

In an Extensible Shift Left instruction, the source argument value is considered to initially occupy the rightmost portion of a space the size of the destination argument prior to being shifted left.

Similarly, in an Extensible Shift Right instruction, the source argument value is considered to initially occupy the leftmost portion of a space the size of the destination argument prior to being shifted right.

Note that it is always possible to perform the operation of one of these instructions with the other one, as only those shifts are valid which result in the source operand remaining entirely within the double-width field. However, both are retained for lower-performance implementations in which a shift operation may take a time proportional to the number of shifts specified.

Once the source argument value is prepared, then the destination is altered as follows:

Bits in the destination argument which do not correspond to bits from the original source argument are unchanged.

Bits in the destination argument which do correspond to a bit from the original source argument are replaced by one of the four bits in the four-bit connective field in the instruction, where these bits correspond, in order, to the possible combinations of a value for the source bit and the destination bit as follows:

Source bit:       0  0  1  1
Destination bit:  0  1  0  1

Thus, if the connective field contains 0111, those bits are replaced by the OR of the source bit and the destination bit; if the connective field contains 0011, the bits in the destination operand that correspond to bits in the original source operand are simply replaced by those bits. Note that a field of this type was used on the AN/FSQ-32 computer, but for general logical operations instead of only for this particular specialized logical operation.

16-bit Operate Instructions

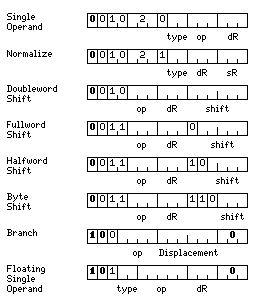

The operate instructions in this group which are 16 bits in length have been seen in the chart for memory-reference instructions; their forms are:

The branch and floating single-operand instructions ara available only in Normal Mode. The other instructions, having opcodes in the range 020000-037777, are available in Normal Mode, Compressed Mode, and Simple Mode.

The opcodes of the shift instructions are:

030x6x   SHLB    Shift Left Byte
031x6x   SHRB    Shift Right Byte

033x6x   ASRB    Arithmetic Shift Right Byte
034x6x   ROLB    Rotate Left Byte
035x6x   RORB    Rotate Right Byte
036x6x   RLCB    Rotate Left through Carry Byte
037x6x   RRCB    Rotate Right through Carry Byte

030x4x   SHLH    Shift Left Halfword
031x4x   SHRH    Shift Right Halfword

033x4x   ASRH    Arithmetic Shift Right Halfword
034x4x   ROLH    Rotate Left Halfword
035x4x   RORH    Rotate Right Halfword
036x4x   RLCH    Rotate Left through Carry Halfword
037x4x   RRCH    Rotate Right through Carry Halfword

030x0x   SHL     Shift Left
031x0x   SHR     Shift Right

033x0x   ASR     Arithmetic Shift Right
034x0x   ROL     Rotate Left
035x0x   ROR     Rotate Right
036x0x   RLC     Rotate Left through Carry
037x0x   RRC     Rotate Right through Carry

020xxx   SHLL    Shift Left Long
021xxx   SHRL    Shift Right Long

023xxx   ASRL    Arithmetic Shift Right Long
024xxx   ROLL    Rotate Left Long
025xxx   RORL    Rotate Right Long
026xxx   RLCL    Rotate Left through Carry Long
027xxx   RRCL    Rotate Right through Carry Long

The opcodes of the branch instructions are:

101xx0            BL      Branch if Low
102xx0            BE      Branch if Equal
103xx0            BLE     Branch if Low or Equal
104xx0            BH      Branch if High
105xx0            BNE     Branch if Not Equal
106xx0            BHE     Branch if High or Equal
107xx0            BNV     Branch if No Overflow

110xx0            BV      Branch if Overflow

112xx0            BC      Branch if Carry
113xx0            BNC     Branch if No Carry

117xx0            BRA     Branch

The opcodes of the return instructions are:

101000            RL      Return if Low
102000            RE      Return if Equal
103000            RLE     Return if Low or Equal
104000            RH      Return if High
105000            RNE     Return if Not Equal
106000            RHE     Return if High or Equal
107000            RNV     Return if No Overflow

110000            RV      Return if Overflow

112000            RC      Return if Carry
113000            RNC     Return if No Carry

117000            RSS     Return from Stack Subroutine

Return Instructions

When the displacement field of a branch instruction is zero, as this value would normally indicate the address of the instruction normally following the branch, instead of the instruction being a no-operation instruction, the opcode is used to indicate a conditional or unconditional return from a subroutine called by a jump to subroutine instruction with base register zero used as a stack pointer.

Note that this means branch instructions cannot safely have their displacements modified for some forms of self-modifying code (which is, in any case, inadvisable on a pipelined machine, and normally unneccessary when index registers are present, as well as being generally deprecated).

Thus, when the condition for a subroutine return is met, first base register zero is decremented by 4 or by 8, depending on whether 32-bit or 64-bit addressing is in use, and then the value at the address now contained in base register zero is used as the new value of the program counter.

Single Operand Instructions

A number of very basic operations, other than the shift instruction, which apply to a single operand are useful to have in a computer, such as complementing a value or clearing it to zero.

Several such operations are defined:

02220x CLR    Clear
02230x CLRL   Clear Long

02221x ABS    Absolute Value
02231x ABSL   Absolute Value Long

02222x INV    Invert
02232x INVL   Invert Long

02223x NEG    Negate
02233x NEGL   Negate Long

The Clear instruction sets a register to zero; the Invert instruction inverts all the bits; the Negate instruction produces the two's complement of the register's contents, producing no change in the register's value, and an overflow condition, if the register has its first bit set and all remaining bits zero. The Absolute Value instruction performs a Negate operation only if the register contents are negative.

The Normalize Instruction

The instructions

0224xx  NB      Normalize Byte
0225xx  NH      Normalize Halfword
0226xx  N       Normalize
0227xx  NL      Normalize Long

shift the contents of the source register left as many times as necessary to make the first bit of the source operand a 1, and store the number of required shifts in the destination register. The type of the instruction applies to the source operand: the destination always is a full 32-bit register.

Floating-Point Single Operand Instructions

As the instruction set described here is quite an elaborate one, designed to accelerate computations as much as possible, it is not unreasonable to include, as some existing architectures have already included, instructions to calculate various mathematical functions in hardware.

1200x0 SINM   1240x0 SIN    1300x0 SIND   1340x0 SINQ
1201x0 COSM   1241x0 COS    1301x0 COSD   1341x0 COSQ
1202x0 TANM   1242x0 TAN    1302x0 TAND   1342x0 TANQ

1204x0 ASNM   1244x0 ASN    1304x0 ASND   1344x0 ASNQ
1205x0 ACSM   1245x0 ACS    1305x0 ACSD   1345x0 ACSQ
1206x0 ATNM   1246x0 ATN    1306x0 ATND   1346x0 ATNQ

1210x0 SINHM  1250x0 SINH   1310x0 SINHD  1350x0 SINHQ
1211x0 COSHM  1251x0 COSH   1311x0 COSHD  1351x0 COSHQ
1212x0 TANHM  1252x0 TANH   1312x0 TANHD  1352x0 TANHQ

1214x0 ASNHM  1254x0 ASNH   1314x0 ASNHD  1354x0 ASNHQ
1215x0 ACSHM  1255x0 ACSH   1315x0 ACSHD  1355x0 ACSHQ
1216x0 ATNHM  1256x0 ATNH   1316x0 ATNHD  1356x0 ATNHQ

1220x0 SQRM   1260x0 SQR    1320x0 SQRD   1360x0 SQRQ
1221x0 QBRM   1261x0 QBR    1321x0 QBRD   1361x0 QBRQ
1222x0 LOGM   1262x0 LOG    1322x0 LOGD   1362x0 LOGQ
1223x0 EXPM   1263x0 EXP    1323x0 EXPD   1363x0 EXPQ
                                          1364x0 CLRQ
                                          1365x0 ABSQ
                                          1366x0 SGNQ
                                          1367x0 NEGQ

The LOG and EXP instructions operate to the base two; the hyperbolic functions are similarly scaled; the trignometric functions take their arguments in circles where one circle equals 360 degrees or two times pi radians, and the accuracy of the sine is limited for small arguments; the functions may be implemented by means of the CORDIC algorithm or related algorithms.

The SGNQ instruction produces 0 if its argument is zero, and +1 for a positive argument and -1 for a negative argument.
