The 16-bit instructions
are made available when a block starts with 11111111110.
This type of block is termed a block with a header of Type IV. They are also
used in blocks with a header of Type I.

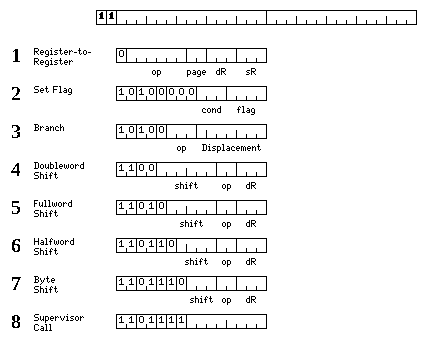

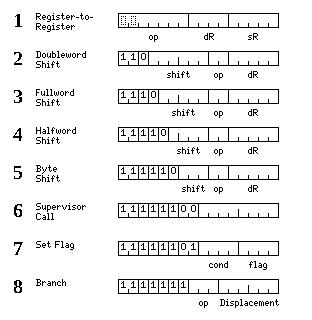

The instructions to be described in this section have the formats shown in this diagram:
The diagram shows the different 16-bit instructions.
The 16-bit instructions do not include memory-reference instructions, or the subroutine jump instruction. However, while the set of 16-bit instructions is therefore not complete in itself, it is sufficient that a large proportion of the instructions in a program could be 16-bit instructions.
Line 1 gives the format of the operate instructions. Integer instructions reference the integer registers, and floating-point instructions reference the floating-point registers, as might be expected.
There are 96 possible opcodes, as the first two bits of an opcode may not be both 1, as these combinations are reserved for other 16-bit instructions.
The opcodes (with the first four bits appearing along the top of the chart, and the last three bits appearing on the right) are:
0 10 20 30 40 50 60 70 100 110 120 130
0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011
SWB IB SWH IH SW I SWL SWM SWF SWD SWQ 000 0
CB CH C CL CM CF CD CQ 001 1
LB ULB LH ULH L UL LL LM LF LD LQ 010 2
STB XB STH XH ST X STL XL STM STF STD STQ 011 3
AB NB AH NH A N AL NL AM AF AD AQ 100 4
SB OB SH OH S O SL OL SM SF SD SQ 101 5
MH MEH M ME ML MEL MM MF MD MQ 110 6
DH DEH D DE DL DEL DM DF DD DQ 111 7
The different instructions are:
For integer types:
M MULTIPLY Multiply the contents of the source and destination locations, placing the
least significant part of the result of the same length as the two input
operands in the destination location, with sign extension if that is shorter
than the length of the destination register
D DIVIDE Divide the contents of the source location by the contents of the destination
location, placing the quotient in the destination location
L LOAD Place the contents of the source operand in the destination register;
if the type involved is smaller than the register, perform sign extension
ST STORE Fill the destination location from the least significant part of the
source location
A ADD Add the contents of the source and destination locations, placing the
result in the destination location
S SUBTRACT Subtract the contents of the source location from those of the destination
location, placing the result in the source location
SW SWAP Exchange the contents of the source and destination locations
C COMPARE Subtract the contents of the source location from the contents of
the destination location, but with the operation modified so that
overflow cannot possibly result, and set the condition codes appropriately
without modifying the destination location
I INSERT Fill the least significant bits of the destination register with
the contents of the source location, leaving the rest of the destination
register unaffected
UL UNSIGNED LOAD Fill the least significant bits of the destination register with
the contents of the source location, and clear the remaining more
significant bits of the destination register
X EXCLUSIVE OR Perform a bitwise Exclusive OR operation between the contents of the source
and destination locations, placing the result in the desination location
N AND Perform a bitwise Logical AND operation between the contents of the source
and destination locations, placing the result in the desination location
O OR Perform a bitwise Logical OR operation between the contents of the source
and destination locations, placing the result in the desination location
ME MULTIPLY EXTENSIBLY Multiply the contents of the source and destination locations. Take the
full product, as an integer having twice the size as that of the source
and the destination, and:
- in the case of the halfword and integer versions of the instruction, place it in the destination
register, with sign extension in the halfword version;
- in the case of the long version of the instruction, place the most significannt half of the result
in the destination register, which must be an even-numbered register, and place the least significant
half of the result in the register following
DE DIVIDE EXTENSIBLY Divide a destination operand of twice the length of that indicated by the
instruction type (and located as the result of the MULTIPLY EXTENSIBLY
instruction) by the source operand; store the double length quotient
in the destination location (again following the MULTIPLY EXTENSIBLY
result placement) and the single length remainder in the next register
following those that are used.
Whenever a result is not wide enough to fill a register, sign extension
is performed.
Division is performed giving a result as if both operands were converted
to positive numbers before starting, with the signs then set afterwards
to give a correct result based on the actual signs of the operands. Thus
both the quotient and the remainder will be positive or zero if the dividend
and divisor have the same sign, and both will be negative or zero if they
are of opposite signs.
Note that although these are register-to-register operate instructions, store instructions exist with defined opcodes. This is required because only the first sixteen of the available 32 registers in both integer and floating-point register banks may be the destination register for an instruction in this format.
The possible integer types, and the suffixes that indicate them, are:
B BYTE An 8-bit two's complement integer
H HALFWORD A 16-bit two's complement integer
INTEGER A 32-bit two's complement integer
L LONG A 64-bit two's complement integer
The integer registers are 64 bits long, to contain the longest of these types.
The available floating-point operations are SWAP, LOAD, STORE, ADD, SUBTRACT, MULTIPLY, and DIVIDE. Their functions are basically the same as those of the corresponding integer operations, except that floating-point arithmetic is performed.
The possible floating-point types for 16-bit instructions, and the suffixes that indicate them, are:
M MEDIUM A 48-bit floating-point number (preferably aligned on 16-bit boundaries) F FLOATING A 32-bit floating-point number D DOUBLE A 64-bit floating-point number Q QUAD A 128-bit floating-point number
with their formats as indicated within this diagram:
Note that in the diagram, exponents for the types other than the 128-bit internal type are given as excess-126, excess-510, and excess-1022; documentation for the IEEE 754 standard, and most descriptions of it, refer to the exponents as excess-127, excess-511, and excess-1023 instead. This is because these accounts place the binary point of the mantissa in front of its first visible bit, while I place it in front of the hidden first bit to remain in accord with the convention used in most other floating-point formats that the mantissa is in the range [0.1). In the case of the 128-bit internal form, as the first bit of the mantissa is now the bit which would have been the hidden bit, since for the other forms, I had been placing the binary point in front of the hidden bit, the offset is consistent by remaining two less than a power of two; this would need to be the case even if I had used the normal convention for the exponents of the other formats.
Originally, it had been planned to have the 128-bit type of this architecture to be similar to 80-bit temporary real, but with a longer mantissa. In response to the new standard for a 256-bit floating type, what has been done is to make the exponent field of the 128-bit floating type of this architecture one bit larger than that of the new standard 256-bit floating-point type (in order to be able to handle its denormals correctly).
This means that instructions other than the short ones described on this page will be available to support the old 80-bit temporary real format, and the new standard 128-bit and 256-bit floating-point formats, but the internal form of a standard 128-bit floating-point number will require the use of more than one register, and the internal form of a standard 256-bit floating-point number will require the use of more than two registers.
These instructions are then also suffixed RC for Register Compact to indicate the addressing mode.
Lines 2 through 5 of the diagram illustrate the shift and rotate short instructions. These are:
14x00x LSLLC Logical Shift Left Long Compact
14x04x LSRLC Logical Shift Right Long Compact
14x10x RLLC Rotate Left Long Compact
14x14x ASRLC Arithmetic Shift Right Long Compact
16x00x LSLC Logical Shift Left Compact
16x04x LSRC Logical Shift Right Compact
16x10x RLC Rotate Left Compact
16x14x ASRC Arithmetic Shift Right Compact
17000x LSLHC Logical Shift Left Halfword Compact
17004x LSRHC Logical Shift Right Halfword Compact
17010x RLHC Rotate Left Halfword Compact
17014x ASRHC Arithmetic Shift Right Halfword Compact
17400x LSLBC Logical Shift Left Byte Compact
17404x LSRBC Logical Shift Right Byte Compact
17410x RLBC Rotate Left Byte Compact
17414x ASRBC Arithmetic Shift Right Byte Compact
Logical right and left shifts insert zeroes; the arithmetic right shift inserts a copy of the existing value of the most significant bit into the leftmost position of the word so as to maintain the sign as either negative or non-negative.
An arithmetic left shift inserts zeroes into the leftmost end of a number regardless of its sign, just like a logical left shift, but it differs in that the overflow bit is set if a left shift results in a change of the sign of the value being shifted, instead of merely a carry out of that value; this difference is, however, not applicable to short instructions, as they may not alter the condition codes, not having space for a C bit.
In the 16-bit short instructions, there is no available separate region of opcode space for the rotate instructions, and so instead the arithmetic left shift is replaced by rotate left.
Line 6 of the diagram shows the format of a special instruction:
1760xx SVC Supervisor Call
This instruction performs the equivalent of an interrupt from within software, allowing portions of the operating system not running in supervisor state to request services from the kernel, as well as possibly also allowing user programs to request services from the operating system.
Line 8 of the diagram shows the branch instructions.
The displacement is a 6-bit signed value, in two's complement form, which may vary from -32 to +31. The displacement is in units of 16 bits. No attempt is made to skip over values corresponding to the 32-bit instruction slots containing header information in counting; the displacement is an actual displacement in terms of the memory address, not a count of skipped instructions. A displacement of zero refers to the position immediately following the instruction. The target of a branch instruction must always be an actual executable instruction, and not a setup directive, an immediate value, or any part of a 48-bit or 80-bit instruction other than its first 16 bits.
The available branch instructions are:
1771xx BL Branch if Low 1772xx BE Branch if Equal 1773xx BLE Branch if Low or Equal 1774xx BH Branch if High 1775xx BNE Branch if Not Equal 1776xx BHE Branch if High or Equal 1777xx B Branch
Line 7 of the diagram of 16-bit short instructions, and the correspoonding line in the diagram of 15-bit short instructions, shows how condition values that are invalid result instead in an additional category of instructions which affect the flags used for predicated instructions.
3400xx CTF Condition to Flag Set flag to 1 if condition valid; set flag to 0 if condition not met
3460xx SFC Set Flag on Condition Set flag to 1 if condition met; leave it unaffected otherwise
3464xx CFC Clear Flag on Condition Set flag to 0 if condition met; leave it unaffected otherwise
15-bit short instructions are made available in instruction slots which start with
11 so as to permit the use of short instructions without the need for a special
header.

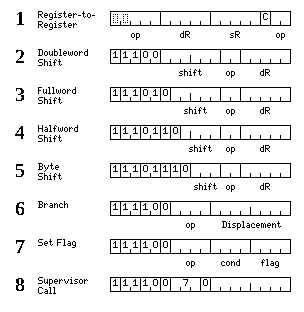

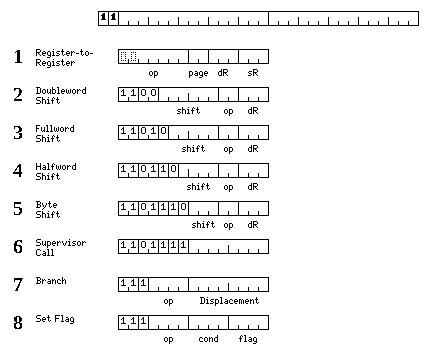

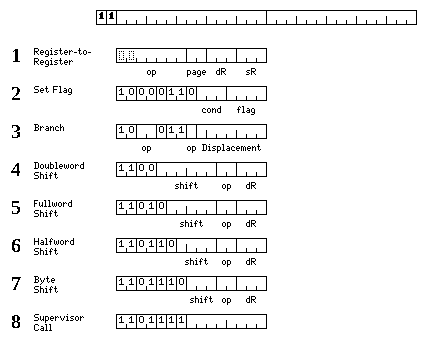

The format of these short instructions is shown below:
As can be seen, they are very similar to the 16-bit short instructions.
One important change is that the shift instructions, in lines 2 through 5, can only operate on the contents of the first eight registers, registers 0 through 7.
The register-to-register instructions in line 1 are changed.
A two-bit page field is shared between the source and destination registers; it supplies the two most significant bits of the register number for both the source and destination registers, while the source and destination register fields supply the three least significant bits of the register number for those registers respectively.
This allows these register-to-register instructions to access all the registers, but the registers are divided into four groups of eight registers, and both operands of such an instruction must belong to the same one of these groups.
Note also that the branch instructions, as shown in line 8 of the diagram, have signed displacements from -128 to 127, as in the 15-bit instructions the displacement field is eight bits in length rather than six.
Because in this instruction format, the source and destination register fields are symmetric, the store instruction is not provided.

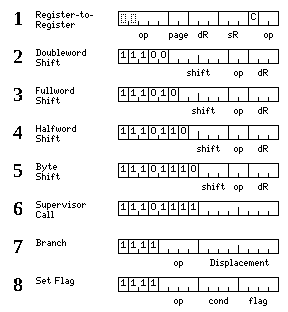

The 17-bit instructions have the form:
These instructions allow any two registers to serve as the operands for the register-to-register operate instructions in line 1, and allow an eight-bit displacement for the branch instructiohs in line 6. They are made available in instruction blocks with a Type II header, and in the last ten 16-bit positions in an instruction block by a Type I header.
The branch instructions in this form of short instruction are:
3404xx BL Branch if Low
3410xx BE Branch if Equal
3414xx BLE Branch if Low or Equal
3420xx BH Branch if High
3424xx BNE Branch if Not Equal
3430xx BHE Branch if High or Equal
3434xx BNV Branch if No Overflow
3440xx BV Branch if Overflow
3450xx BC Branch if Carry
3454xx BNC Branch if No Carry
3474xx B Branch
Unused values are used instead for the set flag instructions in line 7, as follows:
3400xx CTF Condition to Flag Set flag to 1 if condition valid; set flag to 0 if condition not met
3460xx SFC Set Flag on Condition Set flag to 1 if condition met; leave it unaffected otherwise
3464xx CFC Clear Flag on Condition Set flag to 0 if condition met; leave it unaffected otherwise
As noted on the main page, since it is possible to provide a usable set of short
instructions that are only 14 bits in length, and providing paired 15-bit instructions
means that the short instruction prefix is only the bits 11, it is feasible
to slightly modify this ISA to provide variable-length instructions without a prefix.

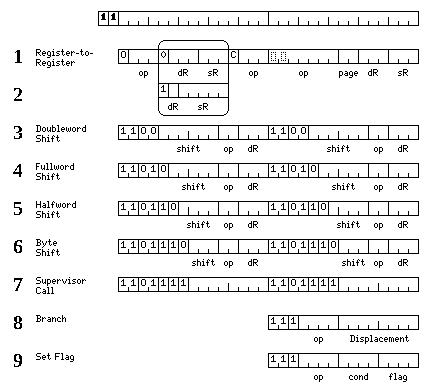

The 14-bit short instructions have the form:
This means that the opcode field is reduced to five bits in length, so only a select set of the most important operations can be performed by instructions of this form.
The table below shows the opcodes of the instructions that are available.
00 10 10 11 SW SWL SWF SWD 000 C CL CF CD 001 L LL LF LD 010 ST STL STF STD 011 A AL AF AD 100 S SL SF SD 101 M ML MF MD 110 D DL DF DD 111
