Quadibloc 2002E: The Standard Rounds

The standard rounds of this cipher, which do perform genuine encryption, and thus cannot be described as merely being a mixing and whitening phase, are a modified form of the Quadibloc 2002A round.

An enlarged form of the diffusion phase, where the pseudo-Hadamard transform with a key-dependent S-box added is replaced by a keyed mini-Feistel cipher with four rounds, as illustrated below:

is an element of this cipher. Note that the in-place Feistel rounds have their left and right halves reversed in the right half of the block. Note also that the byte interchange between the layers has been changed.

The byte interchange between the first and second layers has been changed to move the bytes as shown below:

from: 1 2 3 4
to:   4 1 2 3

in the left half, and

from: 1 2 3 4
to:   2 3 4 1

in the right half.

This is reversed between the third and fourth layers, so that the arrangement can be its own inverse if the subkeys are suitably shifted, and if the key-dependent bijective S-boxes SB1 and SB2 are switched. (Because of the number of different elements in the cipher, the key-dependent S-boxes, instead of being numbered starting with S8, are given their own number series.)

The reason for this change is so that for the eight Feistel rounds that make up the first two layers, and the eight Feistel rounds that make up the last two layers, left and right halves of the Feistel rounds will strictly alternate. No attempt, however, has been made to retain the alternation across the gap between the second and third layers, since the diagonal transpose used there is needed to retain the self-inverse property.

Because of the self-inverse property, this enhanced diffusion phase alternates with a diffusion phase which, although more similar to that used in Quadibloc 2002A, also is changed in terms of the byte interchange and the orientation of the rounds in the same way:

and which becomes its own inverse if the roles of key-dependent S-boxes SB3 and SB4 are interchanged.

In this diagram, the operations that take place between the rounds are also illustrated.

Incidentally, note that the operation interchanges the bytes from the order

  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

to the order

  8 10 14  4  5 11 15  1 16  2  6 12 13  3  7  9

This arrangement is, of course, self-inverse. Since it is a rearrangement, however, what are its implications for the effects of subsequent swap halves operations on diffusion? Unfortunately, they are very poor; the same bytes correspond on opposite halves of the block after this rearrangement as before.

This can be improved by changing how bytes are rearranged after the first set of small Feistel rounds from

  4  1  2  3  8  5  6  7 10 11 12  9 14 15 16 13

to

  4  1  2  3  6  7  8  5 12  9 10 11 14 15 16 13

and similarly making the rearrangement between the third and fourth layers the inverse of that. This retains the property that left and right sides of Feistel rounds alternate, and it still ensures each byte interacts indirectly with each other byte, but it avoids this excessive symmetry, causing the overall interchange of the four layers to become:

  6 12 14  4 15  1  7  9  8 10 16  2 13  3  5 11

which ensures that all corresponding bytes in opposite halves were originally in the same half before, thus maximizing the additional diffusion provided by successive swap halves steps.

However, since all the bytes are thoroughly mixed by the operation, this improvement may not seem necessary, since in a sense, the same thing, a function of all the previous bytes, is always being diffused. The diagram below shows how the previous diagram appears after having been modified to reflect this change:

When this modification is made both to the lesser diffusion rounds, as shown above, and to the greater diffusion rounds as well, the resulting cipher becomes Quadibloc 2002EC (corrected).

However, it is possible to do even better than this. Since the greater diffusion phases are different from the lesser diffusion phases, if they are modified in a different manner, then it could take four rounds, rather than two rounds, for the bytes to return to their original positions, thus allowing the bit swap operations to provide additional diffusion.

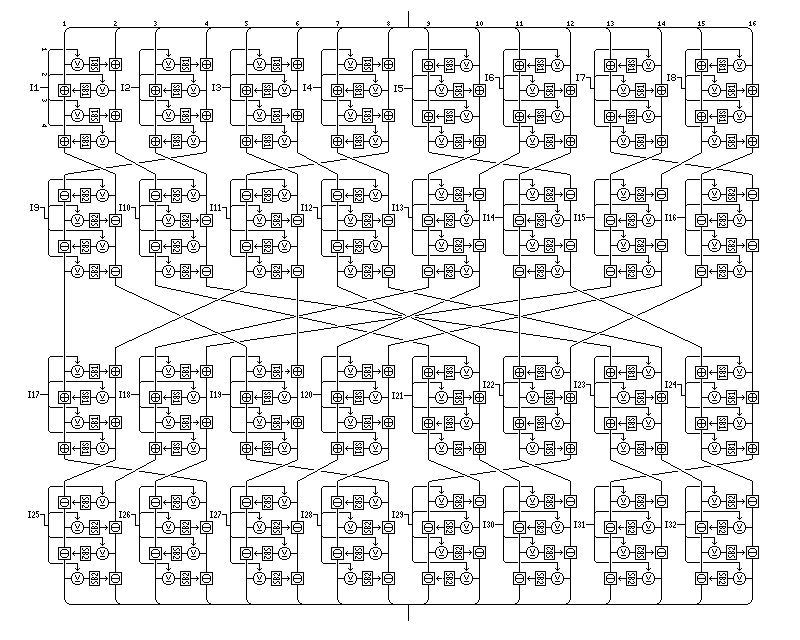

One way of doing this is illustrated below:

Here, the layer structure has been changed for half the block, so that instead of alternating between the use of the two S-boxes, and between addition and subtraction, in layers, the same operation is used for two layers at a time. This makes the kind of byte interchange needed between the layers of the first and second pairs to preserve the alternation between left and right halves of the Feistel rounds completely different.

Thus, between the first and second layers, the interchange is from

  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

to

  1  4  3  2  5  8  7  6 10 11 12  9 14 15 16 13

and between the third and fourth layers, the interchange is from

  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

to

  1  4  3  2  5  8  7  6 12  9 10 11 16 13 14 15

resulting in the overall interchange of the four layers becoming:

  1 14 10  5  4 15 11  8 16  3  7 12 13  2  6  9

Here, although corresponding bytes in opposite halves are still from opposite halves, they are not the original partners of the bytes on opposite halves before the interchange, so diffusion is still increased, but in a different way.

The net result of this reform of the greater diffusion phase combined with the previous change applied to the lesser diffusion phase is that the bytes interact as follows:

They begin as independent bytes:

  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

After the first bit swap phase, they are mixed as follows:

  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16
  9 10 11 12 13 14 15 16  1  2  3  4  5  6  7  8

where, under the number of each byte, is the number, in the original ordering, of the other byte with which it has swapped bits.

After a greater diffusion phase, the ordering of the bytes is changed to this:

  1 14 10  5  4 15 11  8 16  3  7 12 13  2  6  9
  9  6  2 13 12  7  3 16  8 11 15  4  5 10 14  1

Then, the second bit swap phase causes further mixing, so that the bytes now include bits from other bytes as shown here:

  1 14 10  5  4 15 11  8 16  3  7 12 13  2  6  9
  9  6  2 13 12  7  3 16  8 11 15  4  5 10 14  1
 16  3  7 12 13  2  6  9  1 14 10  5  4 15 11  8
  8 11 15  4  5 10 14  1  9  6  2 13 12  7  3 16

The different rearrangement of the lesser diffusion phase, when applied to this, changes the ordering of the mixed bytes to:

 15 12  2  5  6  1 11 16  8  3  9 14 13 10  4  7
  7  4 10 13 14  9  3  8 16 11  1  6  5  2 12 15
  2  5 15 12 11 16  6  1  9 14  8  3  4  7 13 10
 10 13  7  4  3  8 14  9  1  6 16 11 12 15  5  2

and the following bit swap phase mixes bits which now, potentially, come from the original bytes:

 15 12  2  5  6  1 11 16  8  3  9 14 13 10  4  7
  7  4 10 13 14  9  3  8 16 11  1  6  5  2 12 15
  2  5 15 12 11 16  6  1  9 14  8  3  4  7 13 10
 10 13  7  4  3  8 14  9  1  6 16 11 12 15  5  2
  8  3  9 14 13 10  4  7 15 12  2  5  6  1 11 16
 16 11  1  6  5  2 12 15  7  4 10 13 14  9  3  8
  9 14  8  3  4  7 13 10  2  5 15 12 11 16  6  1
  1  6 16 11 12 15  5  2 10 13  7  4  3  8 14  9

which does indeed avoid duplication.

Quadibloc 2002E, where the lesser diffusion phase is modified as in Quadibloc 2002EC, and the greater diffusion phase is modified as shown above, becomes Quadibloc 2002EM (maximum).

The S-box S1 is the same one as used in Quadibloc 2002A:

 232 116 188 183 118 218 184  40
 137 185 157 230 200 130  31 100
 140 178 126 206 237 222 220 147
  70  36  53 254 111 210 204  14
  78 255  71  76  25  84  64 239
   7 180  60  75 169 217 225  82
 203  73 141  94 109  26 182  63
 181 103 158 145  42 142  97  55
  38 159 201 186  80 151  24  34
 173  49 129  43  35 252  32 150
  68 171  47 248  37 221 238 101
 127 153 155 162 134 253  51 120
 107  62 131 233  15  87 161  57
 174 170 240  96 243  52 196  28
 235 216 231 122   1 195   4 128
  95 245 115 152 125 124  18  88
 119  74  13  98 191 242  92 229
 138   8 136 172  16  50  61 241
 214  59 198  23 228 164  79  69
 123  89 175  90 234  10  58  65
 227 102  91 211 149 179 213 246
 197  44 105  81 139  72 104 154
 207 189  17 165  41  56  54   3
   6   9  67 215   2 177 193 132
 223 190 199 117 110 168 146 194
  12  66 209  48  30 251  19 176
 224 202  29 163 244 166 144 187
 113  45   5 247  22  85  21 192
 208  46 250 160 148 135  11 114
   0  99 156 112 249  20  86  39
 106 143 133 108 212 121 167 219
  83 236 226 205  77  93  27  33

and the second self-inverse S-box, derived from the original S2 defined in the page on Euler's Constant and the Quadibloc S-boxes in the same fashion, is the following:

  68 196  12  96  92 226  20 180
 242  48 153 237   2 121 125 232
 253 154 249  28   6 214  73 109
  58 116 100 136  19 255  31  30
 219 163 167  57 140 119  53 228
 210  89 224 122  62 202  93 151
   9 171 191 190 175  38 104 201
  95  35  24 208 129 250  44 229
 127 148  74 131   0 215 245  88
  90  22  66 221  85 184 238 179
 110 165 173 139 126  76 115 132
  71  41  72 169   4  46 113  56
   3 143 235 117  26 243 177 246
  54 223 118 195 135  23  80 199
 182  94 176  86  25  99 106  37
 188  13  43 241 225  14  84  64
 145  60 194  67  87 152 193 108
  27 144 212  83  36 142 141  97
 137 128 239 220  65 218 157  47
 133  10  17 156 155 150 211 187
 185 172 174  33 240  81 203  34
 251  91 209  49 161  82 162  52
 114 102 233  79   7 230 112 244
  77 160 252 159 120 248  51  50
 234 134 130 107   1 198 197 111
 213  55  45 166 247 217 231 254
  59 170  40 158 138 200  21  69
 227 205 149  32 147  75 236 105
  42 124   5 216  39  63 181 206
  15 178 192  98 222  11  78 146
 164 123   8 101 183  70 103 204
 189  18  61 168 186  16 207  29

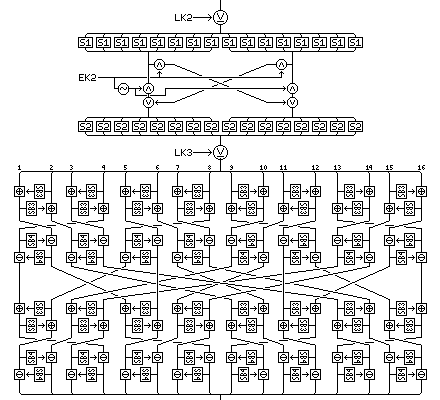

The diagram shows that an ICE-style bit swap has been added, between two nonlinearity phases. This bit swap is the reason that the Feistel rounds in the right half have been reversed, so that a simple bit swap between the right and left halves of the cipher moves a bit from entering the half first to be modified to entering the half first to be an f-function input.

Thus, the block cipher consists of the following steps in order at the beginning:

The exchange keys used to control the bit swap phases are processed through a 4 of 8 code, so that each bit swap phase always exchanges exactly four bits between corresponding bytes.

Note that only interchanging S-boxes S6 and S7 is required to make the lesser diffusion phase its own inverse, exactly as an S-box interchange did so for the Quadibloc 2002A diffusion phase.

Because the cipher begins with a bit swap phase, which is keyed, the cipher, on the one hand, can be combined with either an S-box or XOR whitening without waste, and on the other, it creates uncertainty about which portion of the algorithm any bit will enter; each bit may be directed towards either of the two halves of the initial Feistel rounds in the first greater diffusion phase.

This cipher includes eleven rounds of this type. In the middle of the cipher, there are three rounds, with the structure:

and at the end of the cipher there are four rounds, such that the sequence of phases is the exact reverse of that at the beginning of the cipher, and thus the subkeys used in the last four rounds are LK15 through LK22, EK9 through EK12, and K129 through K192.

Note that in the reversed rounds, the order in which S1 and S2 are used is also reversed, again in order to retain the self-inverse property of the cipher. This means that S2 is used twice in a row in the symmetric augmented sixth round; however, as there is a diffusion phase between the two occurrences, this does not seem like a serious problem.

The operations in the rounds, and their precise definitions, are as follows:

Bit Swap Phase

In the bit swap phase, the 128-bit block is considered as being composed of a 64-bit left half and a 64-bit right half. A 64-bit exchange key is applied to the block in this phase. Where a bit of the exchange key is a zero, the corresponding bits of the left and right halves of the block are unaffected. Where a bit of the exchange key is a one, the corresponding bits of the left and right halves of the block are exchanged.

Nonlinearity Phase

In this phase, the 128-bit block is considered as being composed of sixteen 8-bit bytes. Each byte is replaced by its substitute in the self-inverse S-box S1 given above.

Alternate Nonlinearity Phase

In this phase, the 128-bit block is considered as being composed of sixteen 8-bit bytes. Each byte is replaced by its substitute in the self-inverse S-box S2 given above.

Key Phase

In this phase, the 128-bit block is modified by being XORed with the 128-bit long subkey for the phase.

Lesser Diffusion Phase

In this phase, the 128-bit block is considered as being composed of sixteen 8-bit bytes, and these bytes are also taken in pairs for some operations.

First, the first (or leftmost) four pairs of bytes are subjected to a modified Pseudo-Hadamard transform, as follows: the byte on the left is modified by having added to it, by means of modulo-256 addition, the substitute in key-dependent S-box SB3 of the byte on the right, and then the byte on the right is modified by having added to it, by means of modulo-256 addition, the substitute in key-dependent S-box SB3 of the byte on the left.

At the same time, the last (or rightmost) four pairs of bytes are subjected to a reversed modified Pseudo-Hadamard transform, as follows: the byte on the right is modified by having added to it, by means of modulo-256 addition, the substitute in key-dependent S-box SB3 of the byte on the left, and then the byte on the left is modified by having added to it, by means of modulo-256 addition, the substitute in key-dependent S-box SB3 of the byte on the right.

Then the sixteen bytes of the block are interchanged, being moved from the order

 1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

to the order

 4  1  2  3  8  5  6  7 10 11 12  9 14 15 16 13

Then, the first four pairs of bytes are subjected to a modified Inverse Pseudo-Hadamard transform, as follows: the byte on the right is modified by having subtracted from it the substitute in key-dependent S-box SB4 of the byte on the left, and then the byte on the left is modified by having subtracted from it the substitute in key-dependent S-box SB4 of the byte on the right.

At the same time, the last four pairs of bytes are subjected to a reversed modified Inverse Pseudo-Hadamard transform, wherein the byte on the left is the first to be modified, having the substitute of the byte on the right in key-dependent S-box SB4 subtracted from it, and then the byte on the right is modified by having the substitute in key-dependent S-box SB4 of the byte on the left subtracted from it.

Then the sixteen bytes of the block are subjected to a matrix transpose, being moved from the order

 1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

so that they shall lie in the order

 1  5  9 13  2  6 10 14  3  7 11 15  4  8 12 16

Then the eight pairs of bytes are again subjected to modified and reversed modified Pseudo-Hadamard transforms, as previously.

Then the sixteen bytes of the block are interchanged, being moved from the order

 1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

to the order

 2  3  4  1  6  7  8  5 12  9 10 11 16 13 14 15

Finally, the eight pairs of bytes are again subjected to modified and reversed modified Inverse Pseudo-Hadamard transforms, as above.

Greater Diffusion Phase

The structure of the Greater Diffusion Phase is identical to that of the Lesser Diffusion Phase, except that the Pseudo-Hadamard transforms are replaced by operations which consist of four Feistel rounds.

Also, each greater diffusion phase makes use of 32 subkeys, each one 32 bits long.

The first operation uses the first eight of the subkeys required for the phase. The subkeys are applied to the eight pairs of bytes in order from left to right, one to each pair.

The first four pairs of bytes are enciphered as follows:

The byte on the right is modified by having added to it, by modulo-256 addition, the substitute in key-dependent S-box SB1 of the XOR of the first (leftmost) byte of the subkey and the byte on the left.

Then, the byte on the left is modified by having added to it, by modulo-256 addition, the substitute in key-dependent S-box SB1 of the XOR of the second byte of the subkey and the byte on the right.

Then, the byte on the right is modified by having added to it, by modulo-256 addition, the substitute in key-dependent S-box SB1 of the XOR of the third byte of the subkey and the byte on the left.

Then, the byte on the left is modified by having added to it, by modulo-256 addition, the substitute in key-dependent S-box SB1 of the XOR of the fourth (rightmost) byte of the subkey and the byte on the right.

The remaining four pairs of bytes are modified in the same fashion, except that the roles of the left and right bytes in each pair are reversed.

Then the sixteen bytes of the block are interchanged, being moved from the order

 1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

to the order

 4  1  2  3  8  5  6  7 10 11 12  9 14 15 16 13

Then another eight subkeys are used, and the eight pairs of bytes are modified in a slightly different manner. The first four pairs of bytes are enciphered in this step as follows:

The byte on the left is modified by having subtracted from it, by modulo-256 subtraction, the substitute in key-dependent S-box SB2 of the XOR of the first (leftmost) byte of the subkey and the byte on the right.

Then, the byte on the right is modified by having subtracted from it, by modulo-256 subtraction, the substitute in key-dependent S-box SB2 of the XOR of the second byte of the subkey and the byte on the left.

Then, the byte on the left is modified by having subtracted from it, by modulo-256 subtraction, the substitute in key-dependent S-box SB2 of the XOR of the third byte of the subkey and the byte on the right.

Then, the byte on the right is modified by having subtracted from it, by modulo-256 subtraction, the substitute in key-dependent S-box SB2 of the XOR of the fourth (rightmost) byte of the subkey and the byte on the left.

The remaining four pairs of bytes are modified in the same fashion, except that the roles of the left and right bytes in each pair are reversed.

Then the sixteen bytes of the block are subjected to a matrix transpose, being moved from the order

 1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

so that they shall lie in the order

 1  5  9 13  2  6 10 14  3  7 11 15  4  8 12 16

The eight pairs of bytes are again modified with the use of eight more subkeys, following the pattern of the first layer above which involved four rounds using modulo-256 addition and S-box SB1.

Then the sixteen bytes of the block are interchanged, being moved from the order

 1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16

to the order

 2  3  4  1  6  7  8  5 12  9 10 11 16 13 14 15

Finally, the eight pairs of bytes are again modified with the use of the last of the eight subkeys for the phase, following the pattern of the layer above which involved four rounds using modulo-256 subtraction and S-box SB2.


Incidentally, note that interchanging XOR with the other operation, either modulo-256 addition or subtraction, in the rounds might be reasonable, since it is no longer a question of imitating the Pseudo-Hadamard Transform when a subkey and four rounds are present; this might diversify the algebraic operations in the cipher in such a way as to strengthen it.
